NEEWER VB A1 V Mount Battery Adapter Plate for DSLR Cameras - Power Your Photography & Videography On The Go

Description

• Efficient V-Mount Battery Adapter- With an impressive conversion rate of up to 90%, this battery adapter plate is an efficient power solution that allows you to power multiple devices via a V-mount battery for extended camera filming, compatible with Fxlion Sony and NEEWER BP-V47 BP-V95 BP-95W and other V mount batteries. A clear battery level display with indicators to check battery status at a glance. The independent power switch saves energy when not in use. No more battery anxiety
• Multiple Voltage Outputs- Features 5.5x2.5mm DC 12V (2 ports), 5.5x2.1mm DC 8V, USB A, USB Type C, D-TAP 14.8V and DC 15V output ports to simultaneously charge multiple devices, such as DSLR cameras, camcorders, laptops, tablets, smartphones, microphones, field monitors and LED video lights. A quick release button allows for easy installment of V mount batteries
• PD60W Bidirectional Fast Charging- The USB Type C port supports both QC and PD fast charging with a maximum PD60W input and output, for rapid charging of smartphones, tablets, or laptops, and with the ability to charge a V Mount battery while it is in use or charge via an AC power adapter. The USB A port supports QC fast charging

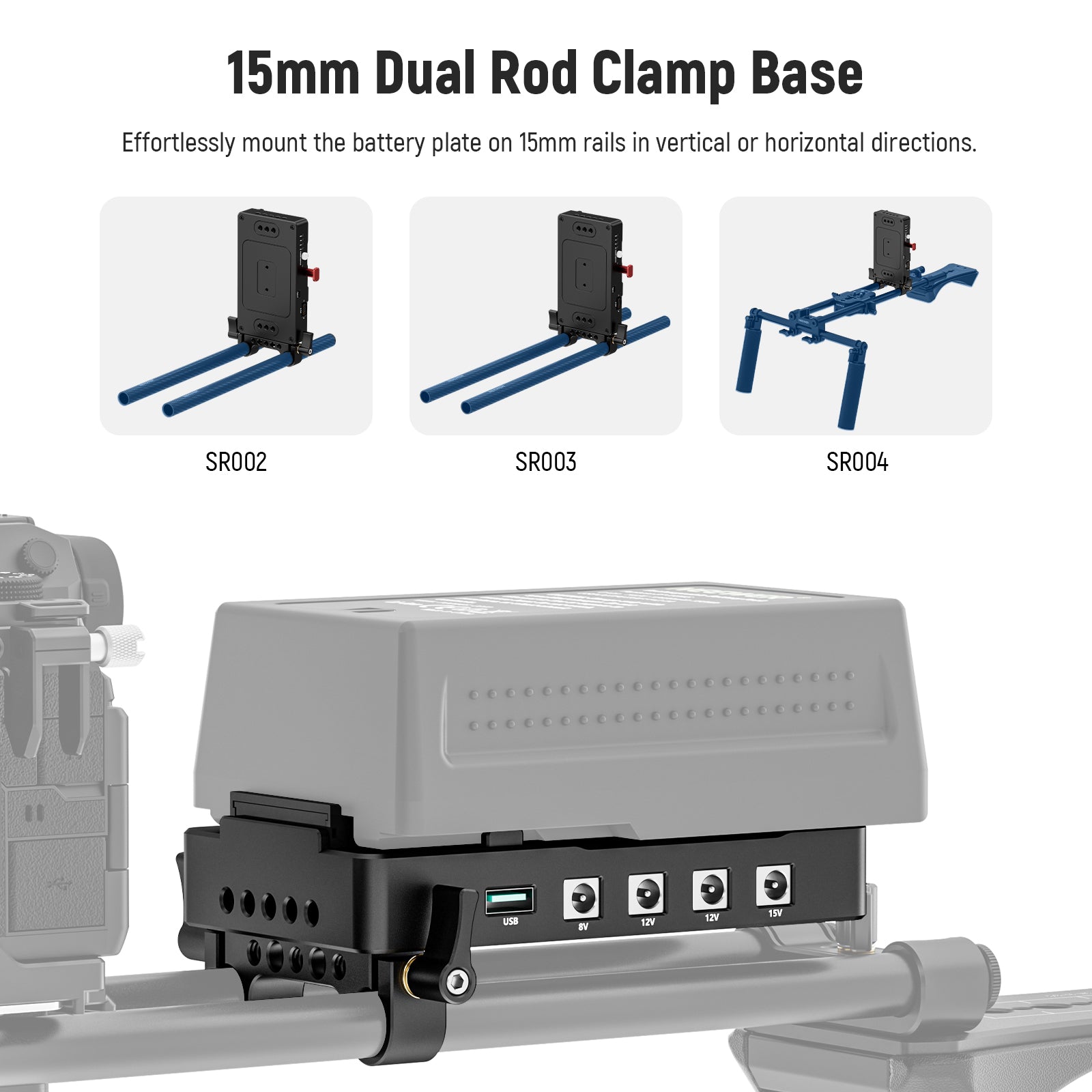

• 15mm Dual Rod Clamps- Includes a dual rod clamp base to mount the battery plate on 15mm rails for vertical or horizontal use, compatible with SmallRig and NEEWER shoulder rigs SR001 SR002 SR003 SR004. Also comes with a number of 1/4" screw holes and a M4 thread hole to attach LED lights, microphones, monitors, brackets, grips, and more
• Intelligent Circuit Protection System- Integrated circuit protection system protects the V mount battery from overcharging, over-voltage, over current, overheating, electric shock, or short circuits, ensuring fast charging without causing harm to battery life. The metal battery bayonet is durable and stable, and designed with fireproof housing for enhanced safety

Specifications

• Model: VB-A1
• Power: 180W Max
• Conversion Efficiency: 90%
• Rod Diameter: 15mm
• Compatibility: Compatible with Sony V mount batteries (BP-V47, BP-V95, BP-95W) and other V mount batteries
• Input:
• Battery: 12.8V-16.8V
• USB Type C: PD3.0 5V/9V/12V/15V/20V (60W Max) & FC 5~12V(3A Max)
• Output:
• USB A: 5~12V (3A Max)
• USB Type C: PD3.0 5V/9V/12V/15V/20V (60W Max) & FC 5~12V(3A Max)
• 8V OUT: DC8.4V (3A Max)
• 12V OUT: DC12V (3A Max)
• 15V OUT: DC15V (3A Max)
• D-TAP: 8-16.8V(battery voltage)
• Dimensions: 5.6"x3.8"x1.3" / 142 x 96 x 32mm
• Weight: 23oz/650g

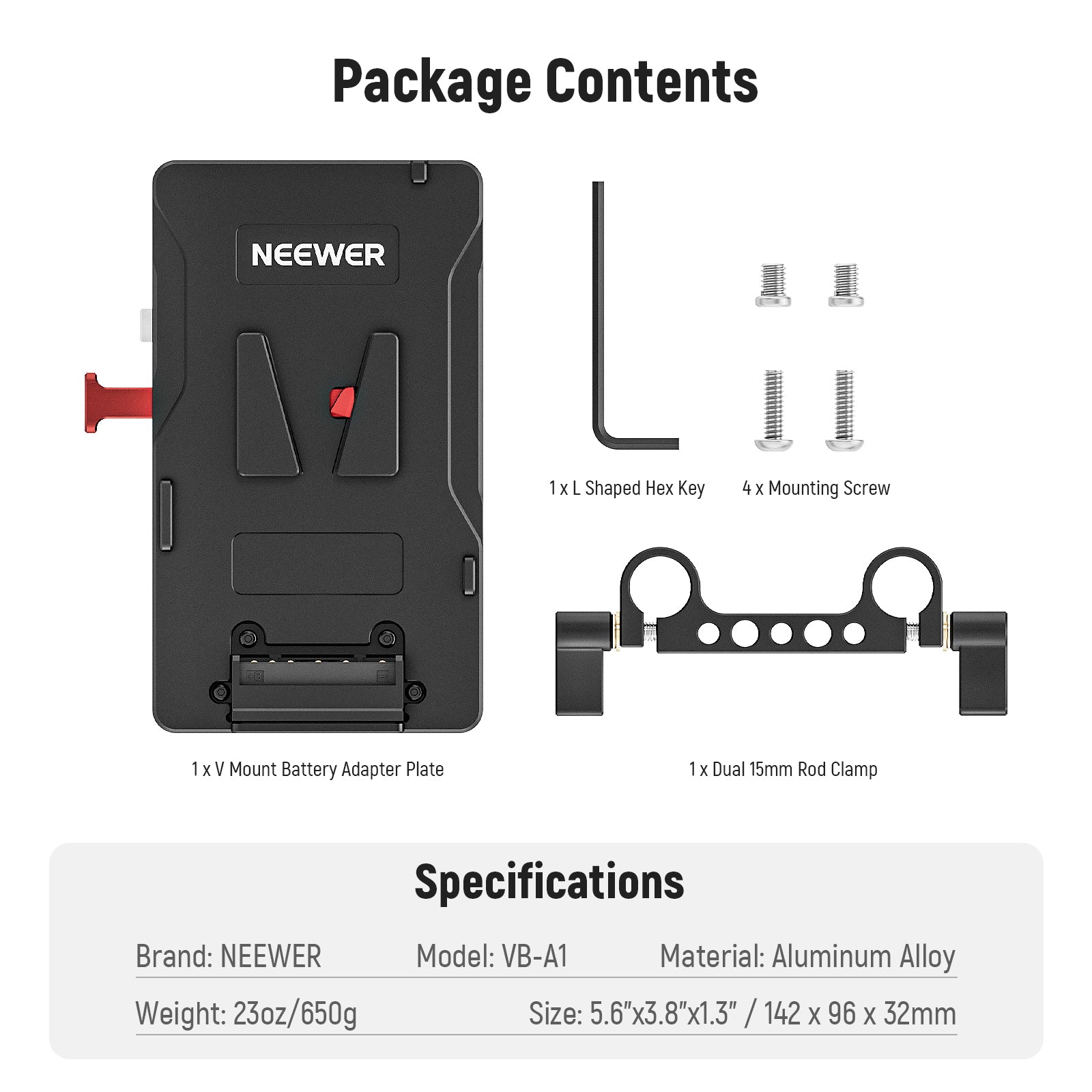

Package Contents

• 1 x V Mount Battery Adapter Plate
• 1 x 15mm Dual Rod Clamp
• 4 x Mounting Screw
• 1 x L Shaped Hex Key
