NEEWER QR003 9/230mm Vixen Style Dovetail Rail Bar Plate - Compatible with Telescopes, Cameras & Mounts for Astronomy & Photography

Features

• Universal Compatibility- Featuring a Vixen style dovetail at the base, this mounting plate is compatible with any standard vixen style saddle manufactured by various brands
• Diverse Mounting Points- Two 3.5" (87.6mm) countersink slots are designed for installing balancing equipment. 0.25" (6.4mm) in width, the slots can accommodate M6 and 1/4" screws. Each slot also features three 3/8" screw holes (M8 countersink holes) with a 1.4" (35mm) spacing between each one
• Twenty 1/4" Screw Holes- Twenty 1/4" screw holes are evenly distributed on both sides of the countersink slots, with a spacing of 0.8" (20mm) between each other. These holes are useful for mounting a variety of devices with the matching thread

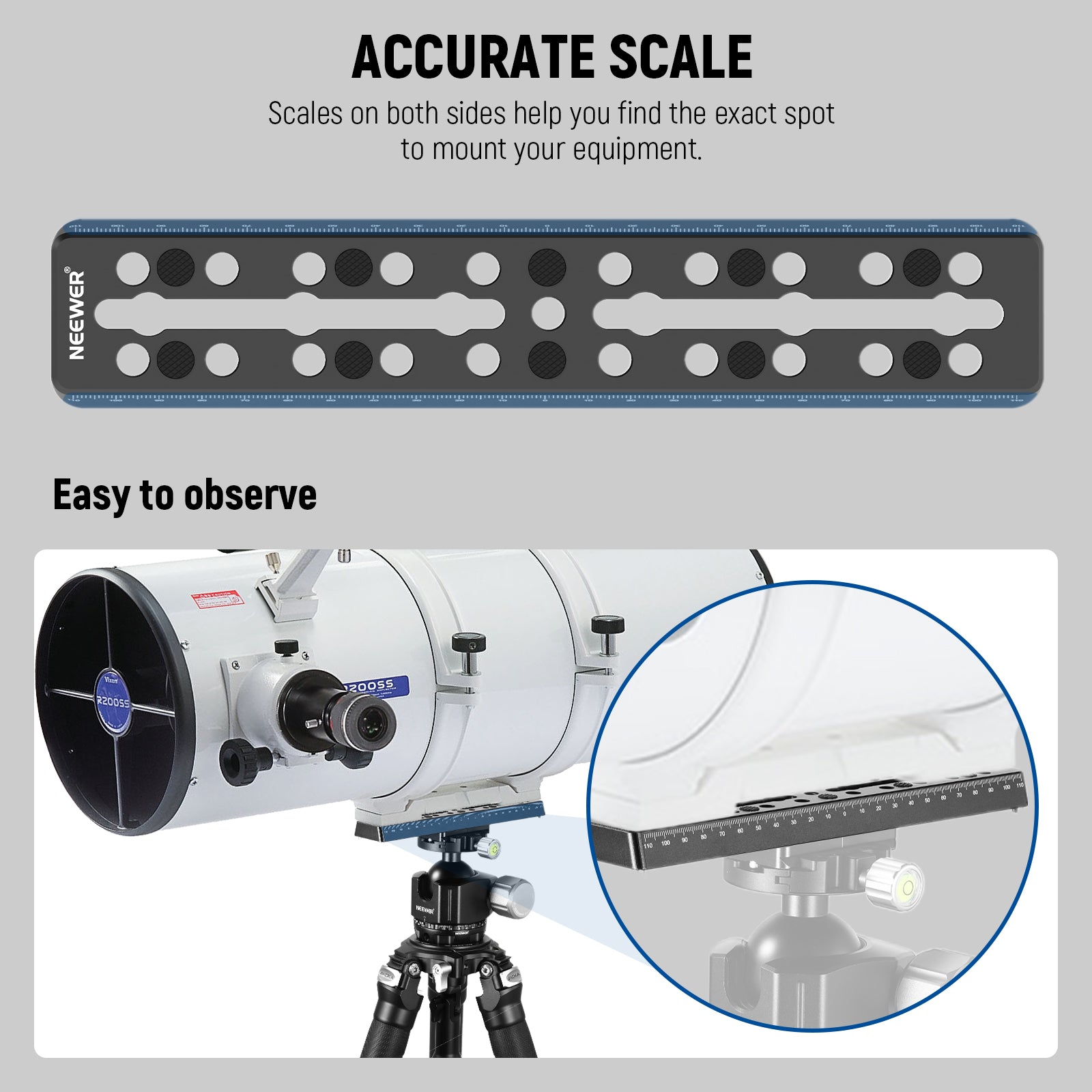

• Precise Scale Markings- Scale markings on either side help you find a precise position to mount your equipment for astrophotography, celestial observation, night sky watching and stargazing
• Nonslip Rubber Pads- Soft nonslip rubber pads increase stability between the mounting plate and your device while protecting the device from unwanted scratches. Four safety screws at the bottom can prevent the mounting plate from dropping. Note: To use the vixen style saddle, two safety screws need to be removed

Specifications

• Model: QR003
• Material: Aluminum alloy
• Mounting Threads: M6, 1/4", 3/8"
• Dimensions: 9" x 1.7" x 0.6" / 230 x 43.5 x 15mm
• Weight: 7.7oz / 219g

Package Contents

• 2 x 3/8" Slotted Screws
• 4 x 1/4" Hex Socket Screws
• 4 x M6 Hex Socket Screws
• 1 x 4mm L Shaped Hex Key
• 1 x 2.5mm L Shaped Hex Key
