Features

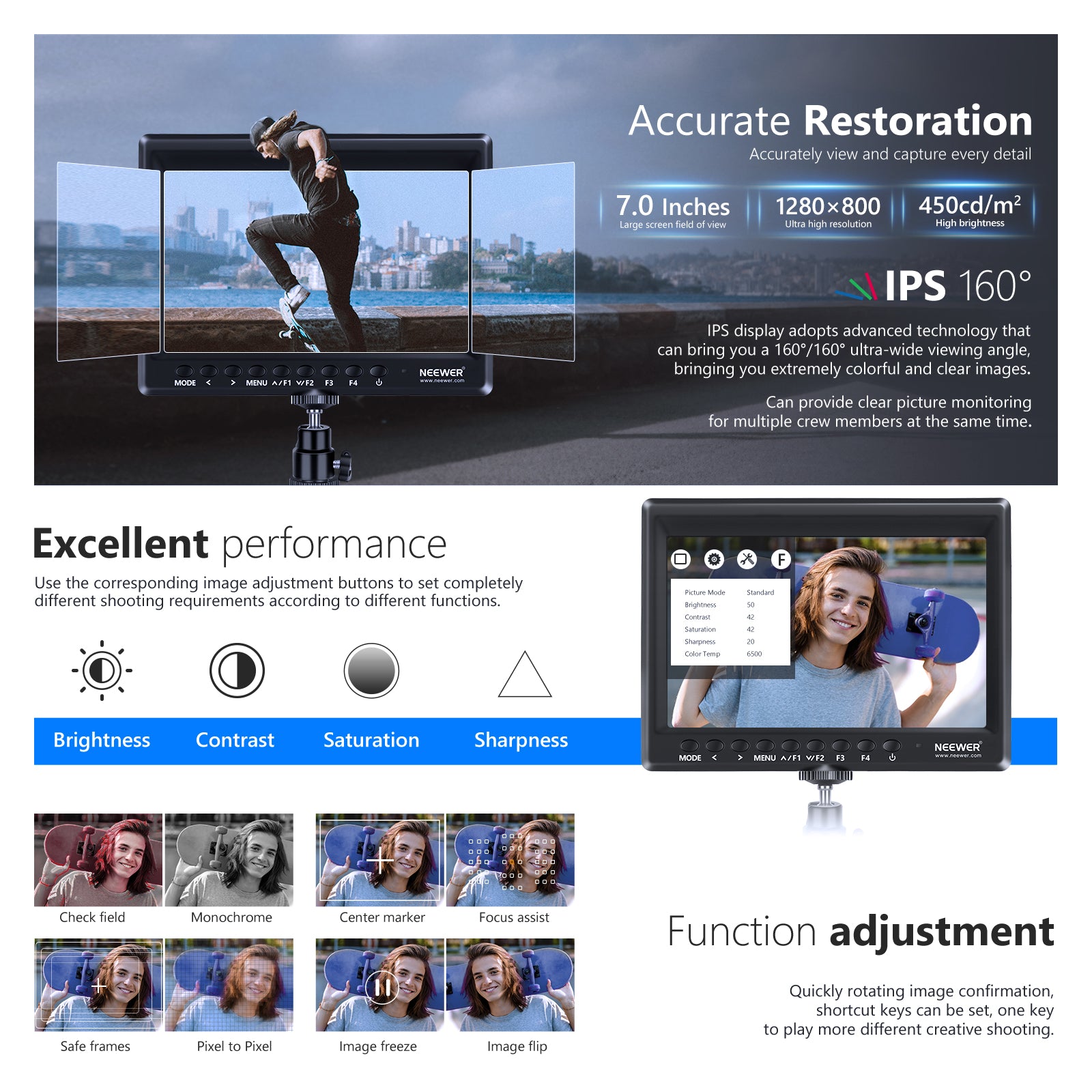

- External Field Monitor- Featuring a 7“ IPS screen, HD 1280 x 800 resolution, 450cd/m2 of brightness, a contrast ratio of 1200:1, an aspect ratio of 16:10, and 0.07875 x 0.07875mm dot pitch, this monitor is handy for video shooting. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Supported Formats- Supports 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 720p (60/59.94/50/30/29/25/24/23.98), 576i, 576p, 480i, and 480p
- Ultra-Thin Design & Wide Compatibility- With a 17mm ultra-thin design, the field monitor is lightweight and portable. Compatible with digital SLR cameras, camera kits, handheld stabilizers, camera cranes, and more. The included sunshade blocks harsh sunlight and makes the display visible outdoors
- Advanced Features- Includes monitoring tools such as Peaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Safe Frames (80%, 86%, 90%, 93%, 96%, 2.35:1, off), Image Flip (H, V, V_H), Image Freeze, and Custom Color Temperature
Specifications
- Model: F100
- Panel Type: IPS LCD
- Resolution: 1280x800
- Backlight: LED
- Dot Pitch: 0.07875x 0.07875mm
- Aspect Ratio: 16:10
- Brightness: 450nits
- Contrast Ratio: 1200:1
- Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)
- Inputs: HDMI, AV
- HDMI Support Mode:
- 480i / 480p / 576i / 576p / 720p/ 1080i (60/59.94/50) / 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- UHD 3840x 2160p (30/29.97/25/24/23.98)
- Input Voltage: DC 7-24V
- Power Consumption: ≤8W

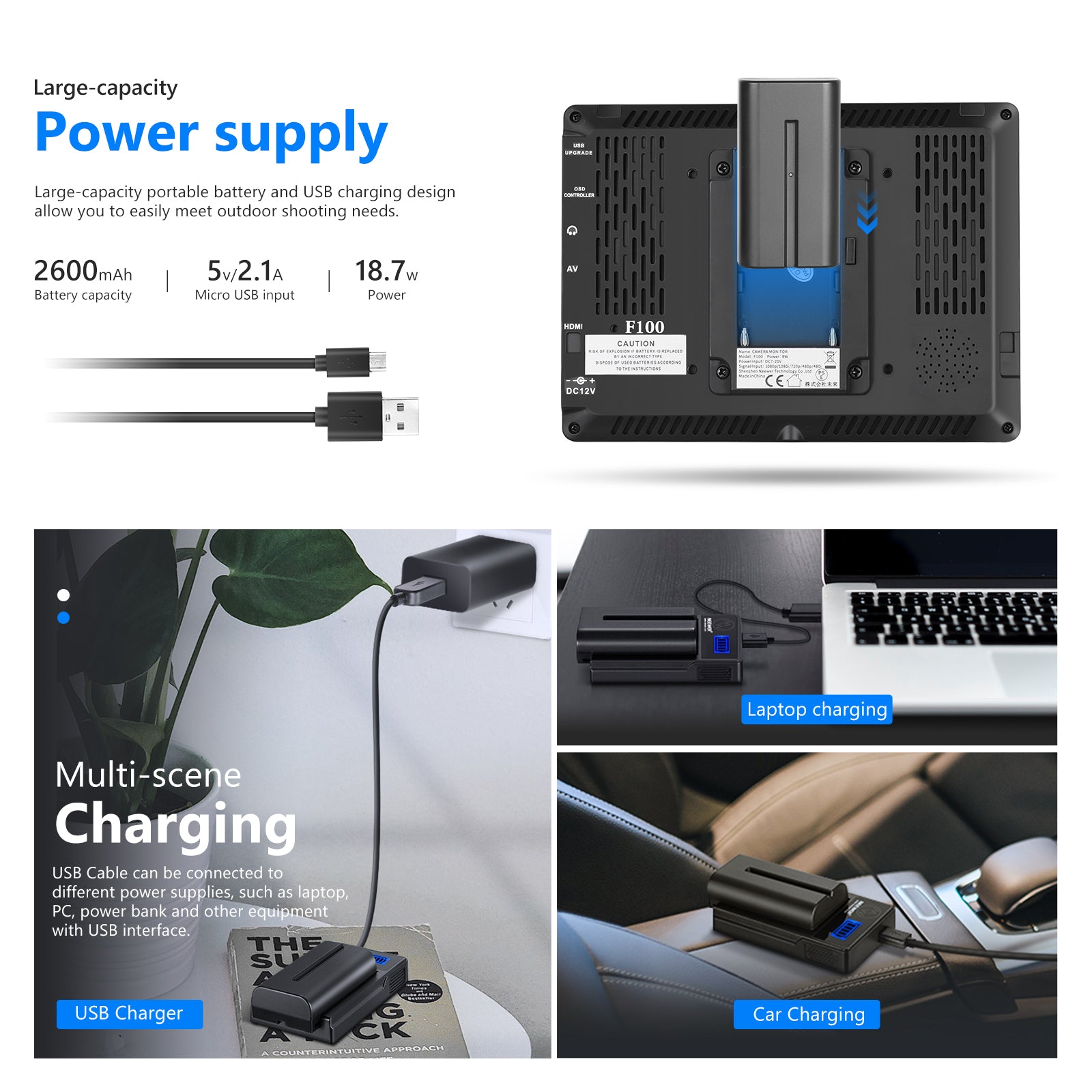

- Battery Type: NP-F battery
- Dimensions: 6.9”x 5.1”x 0.7”/ 176 x 130 x 17mm
- Weight: 13oz / 370g
Package Contents
- 1x F100 Monitor
- 1 x Sunshade
- 1 x Mini HDMI Cable
- 1 x Micro HDMI Cable
- 1 x AV Cable
- 1 x Mini Ball Head
- 1 x NP-F550 2600mAh Li-ion Battery
- 1 x NP-F550 USB Battery Charger
- 1 x User Manual
Note:12V adapter is not included.
